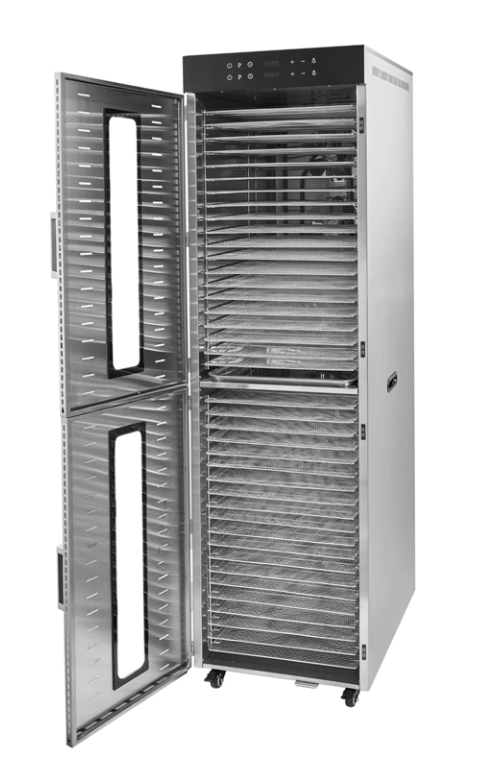

Heavy-Duty 40-Tray Food Dehydrator for Jerky Production

The 40 trays commercial food dehydrator provides large-capacity drying solutions for industrial applications and business operations with continuous production requirements. This unit features two independent drying chambers stacked vertically, supporting separate temperature and timing control for different product batches. The vertical floor-standing design occupies minimal floor space while delivering substantial drying capacity, making it suitable for food processing facilities, snack production lines, and agricultural product processing centers. The unit ships fully assembled with casters for mobility between workstations.

Food Dehydrator Construction and Materials

Chamber Construction

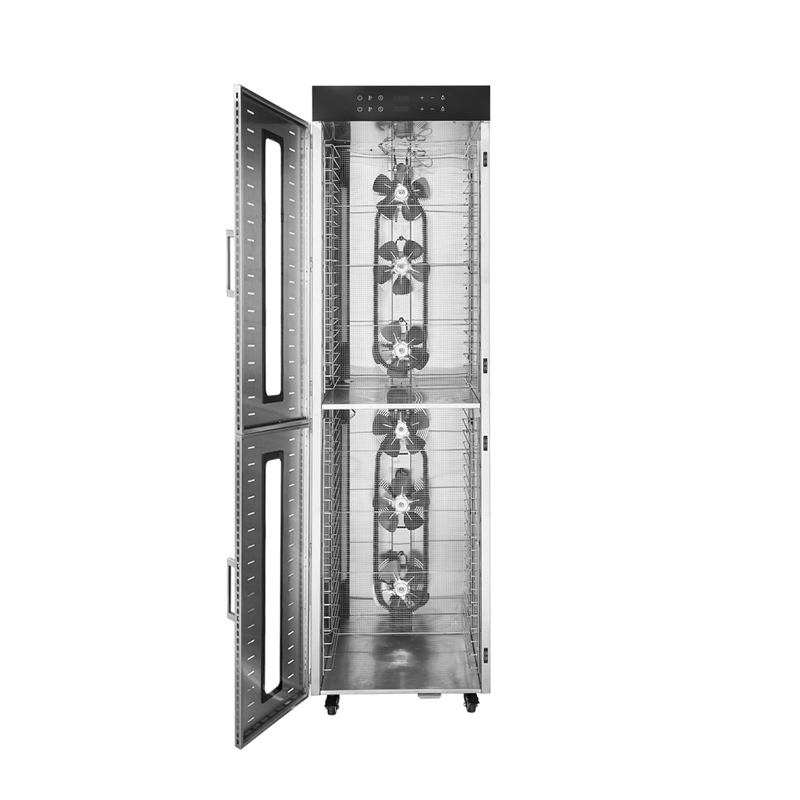

The food dehydrator chamber is constructed from stainless steel with reinforced framing for continuous commercial use. Each chamber door includes a tempered glass observation window, allowing operators to monitor drying progress without opening the chamber and disrupting internal temperature. Aluminum fan blades move air efficiently through both chambers, with six axial fans installed to maintain consistent airflow across all tray positions.

Tray and Component Design

Each drying tray measures 40×38CM with 3.5CM spacing between layers, providing adequate vertical clearance for different product thicknesses. A 30×40CM drip tray sits at the bottom of each chamber to collect moisture runoff and food particles, simplifying cleaning between production runs. Stainless steel door handles provide secure latching during operation, while four lockable casters allow easy repositioning within production facilities.

Commercial Food Dehydrator Technical Specifications

Features of Food Dehydrator Performance

Airflow and Heating System

The commercial food dehydrator uses horizontal airflow circulation to distribute heated air evenly across all 40 trays. Six independently mounted fans create consistent air movement, reducing moisture buildup and ensuring uniform drying results from top to bottom trays. The 4000W heating system reaches set temperatures efficiently, with temperature accuracy maintained within standard operating tolerances for food processing.

Control System

Digital controls located on the top panel allow operators to set temperature between 30-90°C and timer from 0-24 hours for each chamber independently. The system maintains set parameters automatically throughout the drying cycle, shutting off when the timer completes to prevent over-drying. Ventilation slots positioned along the rear and side panels exhaust moist air while maintaining consistent internal chamber pressure.

Commercial Applications for Food Dehydration

This 40-tray food dehydrator supports multiple commercial food processing operations:

Fruit and vegetable processing: Dried fruit slices, vegetable chips, mushroom drying, and preserved produce

Meat and seafood processing: Jerky production, dried meat strips, fish and seafood preservation

Herb and spice processing: Tea leaves, culinary herbs, medicinal herbs, and spice drying

Pet food production: Natural pet treat drying for commercial pet food brands

Specialty product processing: Flower drying, nut roasting preparation, and raw ingredient dehydration for packaged food products

The dual-chamber design allows operators to run different products simultaneously with different temperature and time settings, increasing production flexibility for varied product lines.

Food Dehydrator Purchase and Support

Packaging and Delivery

Each unit is packaged in a wooden crate measuring 53.5×65×182CM for international shipping, with internal protective materials to prevent damage during transit. Packaging includes moisture protection and corner bracing for all sensitive components. Voltage customization is available for specific regional requirements through commercial procurement consultation.

Warranty and Service

The commercial food dehydrator includes a 1-year warranty covering all components from the date of delivery, with a 3-year extended warranty specifically for heating elements. Technical support is available for installation guidance, operation questions, and replacement part inquiries. Spare parts are available for order to support long-term equipment use in commercial operations.

FAQ

What is the total drying area of the 40-tray food dehydrator?

Each tray provides 40×38CM of surface area, totaling approximately 6.08 square meters of total drying area across all 40 stainless steel trays. Actual batch capacity varies based on product loading density and thickness.

Can the two chambers operate at different temperatures?

Yes, the dual-chamber design supports independent temperature and timer settings for the upper and lower compartments, allowing simultaneous processing of different products requiring separate drying parameters.

What electrical requirements are needed for installation?

The unit operates on 220-240V 50/60Hz power with 4000W maximum draw. Dedicated circuit installation is recommended for commercial kitchen and production facility environments to ensure consistent power delivery.

How often should the unit be cleaned during regular use?

The drip trays should be emptied and cleaned after each production cycle. Tray racks and chamber interiors should be cleaned with food-safe cleaning products between product changes or at minimum once per week for continuous operation.
